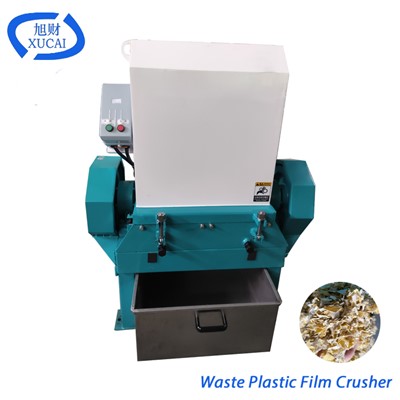

Plastic Film Bag Crusher

Plastic Film Bag Crusher

Model: TLV6032
Motor: 15kw
4pcs fixed blades, 6pcs rotation blades
120-250kg/h capacity, 25mm sieve mesh hole
Multifunctional, Energy saving, Warranty one year
Online Technical Video Support
Low Maintenance Cost, Long use life
Send Inquiry
Chat Now
Description
Technical Parameters
Features Of Plastic Film Bag Crusher



1. The V-shaped knife holder crusher is suitable for crushing light and thin materials, such as plastic film bags, plastic bottles, textiles, sponges, nylon ropes, and other similar materials.
2. Repeated experiments and real-world usage have proven that the motor power selection is highly compatible with the machine model, ensuring efficient material crushing, low energy consumption, and a long service life.
3. The tool holder and blade are heat-shrunk, making them hard and resistant to deformation. The overall design is sleek and aesthetically pleasing.
4. The knife holder is optimally designed, and the blades crush material into evenly sized particles with minimal powder generation.
5. The entire machine adopts a modular design. The machine base, screen support, crushing chamber, hopper, and cutter shaft can all be disassembled for easy maintenance.
6. The machine features a brand-new motor with a copper wire rotor, high torque, overload protection, and fast heat dissipation.
7. The bearing is sealed to prevent crushed material dust from entering and affecting performance.
8. The crushing chamber is thickened to effectively reduce noise and vibration.
9. The plastic film bag crusher supports water-assisted crushing and can be connected to a friction washer, sander, or screw feeder for integrated use.



Technical Parameters



Model

Crushing chamber

size(mm)

Crushing

Ability

(kg/h)

Motor

Power

(kw)

Fixing

Cutter

(pcs)

Flexible

Cutter

(pcs)

Mechanical

Dimension(mm)

Weight

(kg)

TLV6032

600x320

120-250

15

4

6

1100x1080x1435

550

TLV8350

830x500

300-600

30

4

6

1560x1640x2160

2000

TLV1060

1030xx600

400-1000

45

4

6

1900x1890x2650

2400

TLV1265

1220x650

500-1300

55

4

6

2050x2250x2790

2800

TLV1283

1220x830

800-1800

75

4

6

3000x2320x3250

6300



Detail Of Pictures
