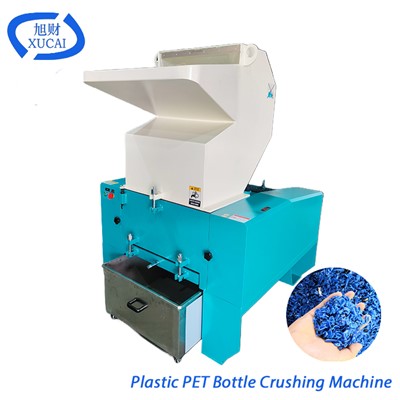

Features Of Plastic PET Bottle Crusher
Efficiency, durability, and output quality are the pillars of a profitable plastic recycling operation. The Waste Plastic Pet Bottle Crusher is engineered to meet these demands, serving as a powerful, reliable backbone for your recycling production line.
In the high-stakes world of plastic recycling, downtime and inconsistent granulation are profit killers. Our TLE Series isn't just a crusher; it's an precision-engineered solution built to convert high-volume waste PET bottles into high-value, uniform flakes. By integrating heavy-duty power components with a refined cutting chamber, we ensure your output meets the stringent requirements of subsequent extrusion and molding processes.
Technical Specifications
|
Model |
Crushing chamber size(mm) |
Crushing Capacity (kg/h) |
Power (kw) |
Fixing Cutter (pcs) |
Flexible Cutter (pcs) |
Mechanical Dimension(mm) |
Weight (kg) |
|
TLE2520 |
250x200 |
30-50 |
4 |
2 |
3 |
1020x670x1090 |
150 |
|
TLE3126 |
310x240 |
50-80 |
5.5 |
2 |
3 |
1150x720x1220 |
220 |
|
TLE4132 |
410x320 |
80-150 |
7.5 |
2 |
6 |
1080x860x1370 |
430 |
|
TLE5132 |
510x320 |
100-300 |
11 |
2 |
6 |
1200x990x1550 |
570 |
|
TLE6033 |
600x330 |
150-400 |
15 |
2 |
6 |
1290x1130x1670 |
730 |
|
TLE6246 |
620x460 |
200-500 |
22 |
2 |
6 |
1600x1240x1970 |
1000 |
|
TLE7246 |
720x460 |
250-550 |
22 |
2 |
6 |
1600x1340x2100 |
1200 |
|
TLE8146 |
810x460 |
300-600 |
30 |
4 |
6 |
1650x1450x2080 |
1500 |
|
TLE8150 |
810x500 |
300-700 |
30 |
4 |
6 |
1650x1450x2080 |
1700 |
|
TLE8256 |
820x560 |
350-800 |
37 |
4 |
6 |
1800x1480x2300 |
1800 |
Detail Of Photos
Bearing
Heavy-duty sealed bearings ensure smooth, low-noise operation, offering exceptional load capacity and long-lasting durability with minimal maintenance.
Control Switch
User-friendly control panel features clear start buttons and a prominent emergency stop, ensuring quick response and maximum operator safety.
Crash Chamber
Robust chamber equipped with premium SKD and D2 steel blades, delivering outstanding wear resistance, sharpness, and high-efficiency crushing performance.
Electrical Components
Equipped with premium Schneider electrical contactors, ensuring stable power distribution, reliable motor protection, and consistently safe machine operation.
Feeding Hopper
Optimized hopper design includes a durable transparent plastic curtain, effectively preventing material splash while ensuring safe and continuous feeding.
Motor
High-efficiency pure copper motor delivers powerful driving force, ensuring stable, energy-saving, and long-lasting performance under heavy loads.
Pulley
Heavy-duty multi-belt pulley system ensures highly efficient power transmission, stable rotation, and effectively minimizes vibration during intense tasks.
Safety Switch
Highly sensitive limit switch automatically cuts off power immediately when the hopper is opened, guaranteeing absolute operator safety.
Screen
Durable, precision-punched steel screen guarantees uniform output sizes, resists wear, and allows for quick, easy replacement and maintenance.
Why Partner With Us? Our Service Commitment
🟢 Pre-Installation Confidence
Technical Consultation: Direct access to our engineering team for workflow optimization (24-hour response).
Performance Validation: We invite you to send your specific waste material for a controlled crushing test, provided via recorded video analysis.
Facility Transparency: We facilitate transparent factory inspections so you can evaluate our manufacturing standards firsthand.
🔵Production-First Support (After-Sales)
Rapid Technical Response: Guaranteed 24-hour turnaround for all inquiries.
Operational Guidance: We provide comprehensive video-based installation and operation manuals to ensure your team reaches peak proficiency quickly.
Lifetime Component Assurance: We include essential spare parts with every initial order, and guarantee low-cost, lifetime access to original components post-warranty.
